Using the Tire Mobility Kit to Repair a Flat Tire
How to repair a flat tire with the Tire Mobility Kit
If a tire punctures while driving, the TPMS warning light on the instrument panel will turn on. In the event of a flat tire, it is important to move the car to a safe location before attempting to make any repairs. The Tire Mobility Kit located under the trunk floor can be used as a temporary fix for the flat tire.

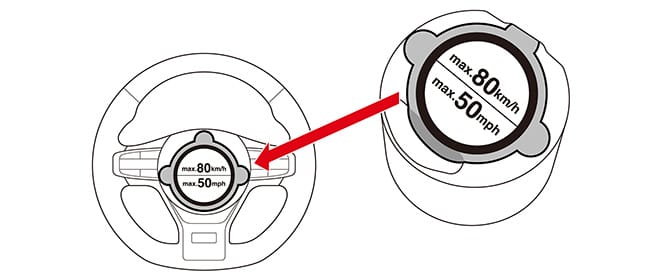

01. Open the trunk and take out the tire mobility kit under the floor. Attach the speed limit label on the sealant container to a conspicuous location, such as the steering wheel, and observe the speed limit when driving the vehicle after repair.

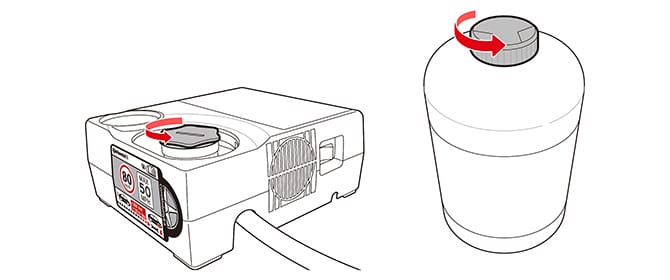

02. Shake the sealant bottle well and connect it to the compressor mount after removing the cap from the sealant bottle and the holder cap from the compressor.

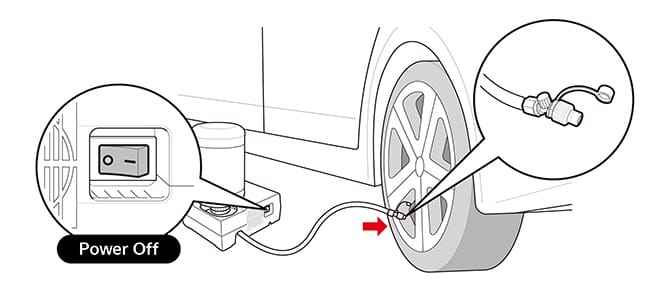

03. Ensure that the compressor is turned off, unscrew the valve cap of the damaged tire. Connect the sealant bottle's filling hose to the tire valve.

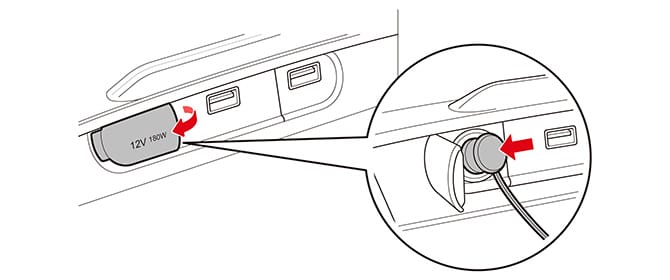

04. Connect the compressor's power connector to the vehicle's power outlet.
05. Start the vehicle and turn on the compressor.

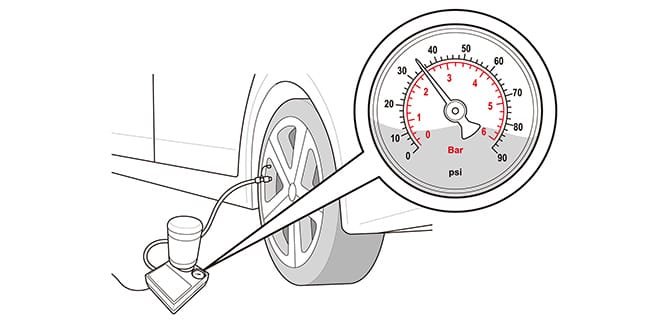

06. Inject sealant until the tire reaches the proper pressure.

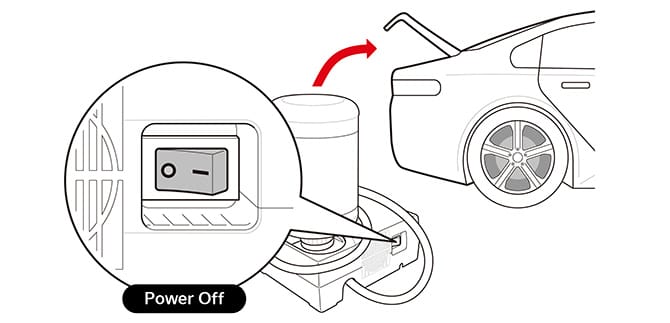

07. Turn off the compressor, remove the hose from the tire valve, and return the tire mobility kit under the trunk floor.

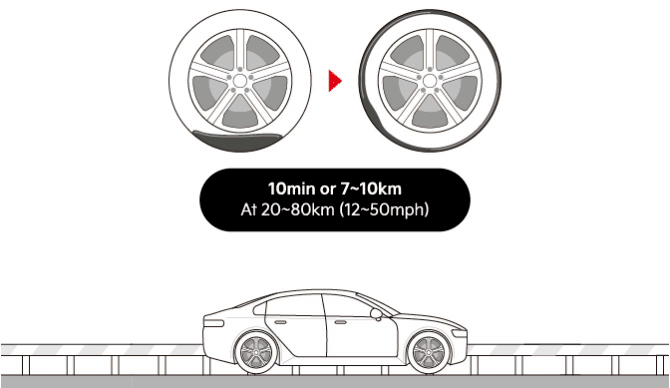

08. Drive the vehicle at a speed of 20 to 80 km/h for 7-10 km or 10 minutes to evenly distribute the sealant inside the tire.
Cautions
- After using the mobility kit to seal a tire, replace the tire at the nearest Kia service center within 200 km. During this time, it is advisable to maintain a speed of less than 80 km/h.
- The tire mobility kit is only designed to seal the tread part where the tire contacts the road surface.
- Do not use the Tire Mobility Kit to repair large punctures or damage to the tire sidewalls.
The availability and operation of features may vary depending on the model, trim, and region. For detailed information, please refer to the owner’s manual for your vehicle.
